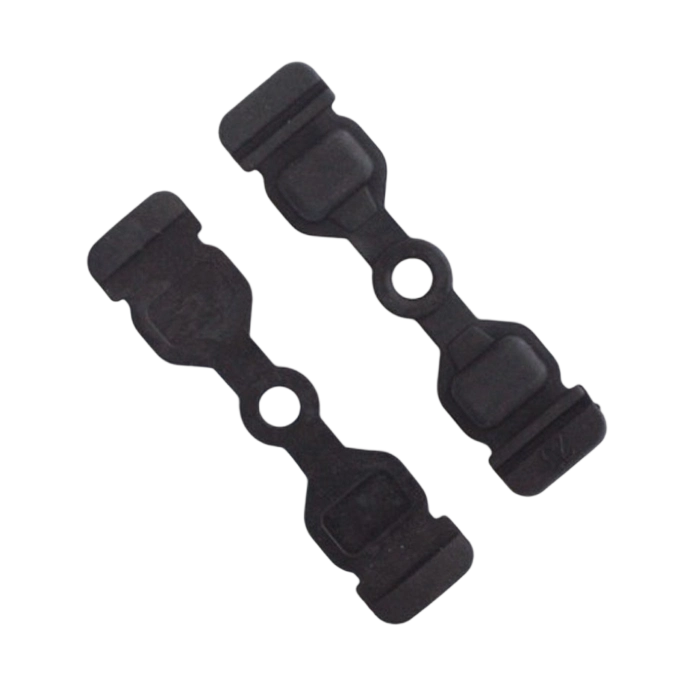

Custom molded rubber sealing gaskets designed for automotive, electrical equipment, and home appliance applications. Available in multiple rubber materials, customizable hardness, and application-specific shapes to support reliable sealing, protection, and assembly performance.
Our molded rubber sealing gaskets are designed for applications that require flexible sealing, stable fit, and customized shapes. Materials, hardness, dimensions, and profiles can be developed according to customer drawings, samples, or assembly requirements.
Gasket shape, holes, grooves, thickness, and sealing edges can be customized for different installation structures.
Available in NBR, EPDM, FKM, HNBR, Silicone, Fluorosilicone, Neoprene, SBR, ACM, AEM, and other rubber compounds.
Smooth surface with a small parting line helps improve appearance, sealing consistency, and assembly fit.
Hardness can be customized from 10 to 90 Shore A to meet different flexibility, compression, and sealing needs.
IATF 16949 certified production support, with inspection standards available under AQL 1.0 / 0.65 / 0.15 and C=0 zero-defect requirements.
In-house tooling with 2 CNC machines operating 24 hours per day helps reduce tooling cost and shorten development time.
Technical specifications for custom molded rubber sealing gaskets used in automotive, electrical equipment, and home appliance applications.
| Product Specifications | |
|---|---|
| Product Type | Molded Rubber Sealing Gaskets |
| Parent Category | Seals |
| Category | Rubber Sealing Gaskets |
| Materials | NBR, EPDM, FKM, HNBR, Silicone, Fluorosilicone, Neoprene, SBR, ACM, AEM |
| Compound Material | Meets ASTM D2000 |
| Compliance Options | UL, FDA, NSF, RoHS, REACH |
| Material Brands | ZEON, LANXESS, Dow Corning, DuPont |
| Hardness | 10–90 Shore A |
| Surface Quality | Smooth surface with small parting line |
| Quality System | IATF 16949 Certified |
| Inspection Standard | AQL 1.0 / 0.65 / 0.15, C=0 Zero Defect |
| Tooling | In-house tooling, 2 CNC machines operating 24H per day |
| Sample Lead Time | About 8 Days |
| Mass Production Lead Time | 12–18 Days |
| Applications | Automotive, electrical equipment, home appliance machines |
With in-house tooling and flexible material selection, we support custom rubber sealing gasket development from sample testing to batch production.
Sample Lead Time
CNC Tooling Operation
Custom molded rubber sealing gaskets are used in assemblies where sealing, protection, cushioning, or flexible separation is required.
Used in automotive assemblies requiring rubber sealing, protection, and vibration reduction.
Helps seal and protect equipment housings, openings, covers, and internal components.
Applied in appliance assemblies where compact rubber sealing or protective parts are required.
Suitable for sealing contact surfaces between covers, housings, and installation panels.
Used where flexible rubber gaskets help reduce leakage, vibration, or direct contact damage.
Suitable for special gasket shapes based on drawings, samples, holes, grooves, or installation structures.
We provide custom rubber sealing gasket manufacturing based on your drawings, samples, material requirements, hardness range, size, and application environment.
Rubber sealing gaskets can be developed according to customer drawings, samples, or installation dimensions.
Rubber compounds and hardness levels can be selected based on sealing performance, flexibility, oil resistance, heat resistance, or compliance needs.
Gasket outline, holes, slots, grooves, thickness, and sealing lips can be customized for different assembly structures.
In-house CNC tooling support helps shorten development time and control tooling costs for custom gasket projects.
