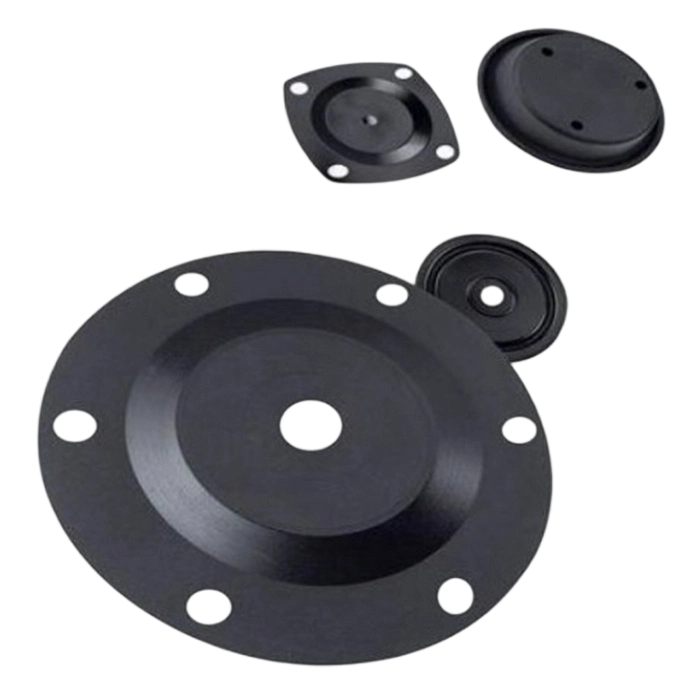

Custom automotive rubber diaphragms designed for flexible sealing, pressure response, and component protection in automotive and electrical equipment applications. Available in multiple rubber materials, customizable hardness, and PPAP Level 3 documentation support for automotive projects.
Our automotive rubber diaphragms are designed for applications that require flexible movement, stable sealing, and reliable quality documentation. Multiple rubber compounds, hardness levels, and custom specifications are available for different sealing and pressure-control requirements.
Designed to support repeated movement while maintaining stable sealing performance in diaphragm-based assemblies.
Suitable for automotive sealing applications requiring controlled production, inspection standards, and PPAP documentation.
Available in NBR, EPDM, FKM, HNBR, Silicone, Fluorosilicone, Neoprene, SBR, ACM, AEM, and other rubber compounds.
Smooth surface with a small parting line helps improve sealing consistency, product appearance, and assembly fit.
IATF 16949 certified production support, with inspection standards available under AQL 1.0 / 0.65 / 0.15 and C=0 zero-defect requirements.
Samples can be prepared in about 7 days, with mass production lead time around 10 days.
Technical specifications for custom automotive rubber diaphragms used in sealing, pressure response, and flexible protection applications.
| Product Specifications | |
|---|---|
| Product Type | Automotive Rubber Diaphragms |
| Parent Category | Seals |
| Category | Diaphragms |
| Materials | NBR, EPDM, FKM, HNBR, Silicone, Fluorosilicone, Neoprene, SBR, ACM, AEM |
| Compound Material | Meets ASTM D2000 |
| Compliance Options | FDA, NSF, RoHS, REACH |
| Material Brands | ZEON, LANXESS, Dow Corning, DuPont |
| Hardness | 20–90 Shore A |
| Surface Quality | Smooth surface with small parting line |
| Quality System | IATF 16949 Certified |
| Inspection Standard | AQL 1.0 / 0.65 / 0.15, C=0 Zero Defect |
| Documentation | PPAP Level 3 Documents Available |
| Sample Lead Time | About 7 Days |
| Mass Production Lead Time | About 10 Days |
| Applications | Automotive, electrical equipment |
We support custom automotive rubber diaphragm development with flexible material selection, fast sampling, short production lead time, and PPAP documentation when required.
Sample Lead Time
Mass Production Lead Time
Automotive rubber diaphragms are used in assemblies where flexible sealing, pressure movement, or media separation is required.
Used in automotive components requiring flexible rubber sealing and controlled movement.
Suitable for assemblies where the diaphragm responds to pressure changes or flow movement.
Helps provide flexible sealing or protective separation in electrical equipment assemblies.
Can be used in systems requiring separation between media, pressure chambers, or moving components.
Provides flexible protection in assemblies exposed to movement, vibration, or pressure variation.
Suitable for customized diaphragm designs based on drawings, samples, or automotive project requirements.
We provide custom rubber diaphragm manufacturing for automotive and electrical equipment applications, including material selection, hardness customization, sample development, inspection support, and PPAP documentation.
Rubber diaphragms can be customized according to customer drawings, samples, or specific installation requirements.
Rubber compounds and hardness levels can be selected based on flexibility, oil resistance, heat resistance, media contact, and sealing needs.
PPAP Level 3 documents can be provided for automotive projects requiring formal quality approval.
Samples can be completed in about 7 days, with mass production lead time around 10 days.
